Tensile Testing Machine
High-Performance Dual column Universal Testing machine for Tensile, Compression, Bending & Fatigue Testing

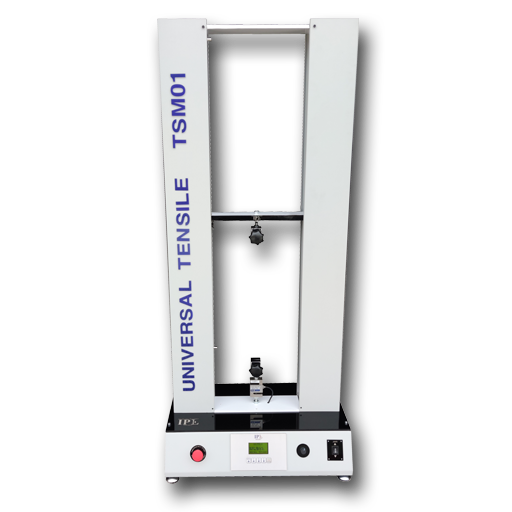

Our Dual Column Universal Tensile Test Machine is designed for comprehensive mechanical testing, including tensile, compression, bending, fatigue, and custom-defined procedures. Engineered for precision and flexibility, it supports a wide range of applications across multiple industries.
Key Features:
- Universal Jaw Compatibility: Supports installation of various types of jaws in multiple sizes and models based on test requirements
- Load Capacity: Available from 1 ton to 10 tons (machine size and components vary according to capacity; images shown are representative of the 1-ton model)
- Versatile Testing Functions: Performs tensile, compression, fatigue, bending, and user-defined specialized tests
- Integrated Software: Includes application software for full test control, reporting, and real-time charting
- Standalone Operation: Capable of running tests and generating results without the need for a computer
Display & Interface Options:
- Touchscreen Availability: Available with 3.5", 7", 8", and 10.1" color touchscreen displays
- Premium Model: Also available with a 15-inch color touchscreen model with complete standalone operation
Data & Reporting:
- Report Formats: Outputs test reports and raw data in Excel, Access, and plain text formats
Safety Features:
- Automatic Shutdown: Emergency test stop system for over-limit tension, compression, or machine stress
- Emergency Stop: Dedicated physical emergency stop button
Speed & Drive Options:
- Speed Control: Available in manual, automatic, and hybrid (manual + automatic) speed control models
- Motor Types: Available in both DC motor and AC servo motor variants
Customization & Ordering:
- Fully Customizable: Tailored configurations available based on customer requirements
- Adjustable Working Space: Order available with test openings ranging from 40 cm to 120 cm
